GE Zoneline
GE Zoneline GG40T08BXR 40 GAL GAS WTR HTR TALL
Part #176261
To place an order, please call 800-635-1001 or email e-commerce@fisscosupply.com.
Key Features
- Quick Recovery: A 40K BTU max-performance burner quickly replenishes hot water.

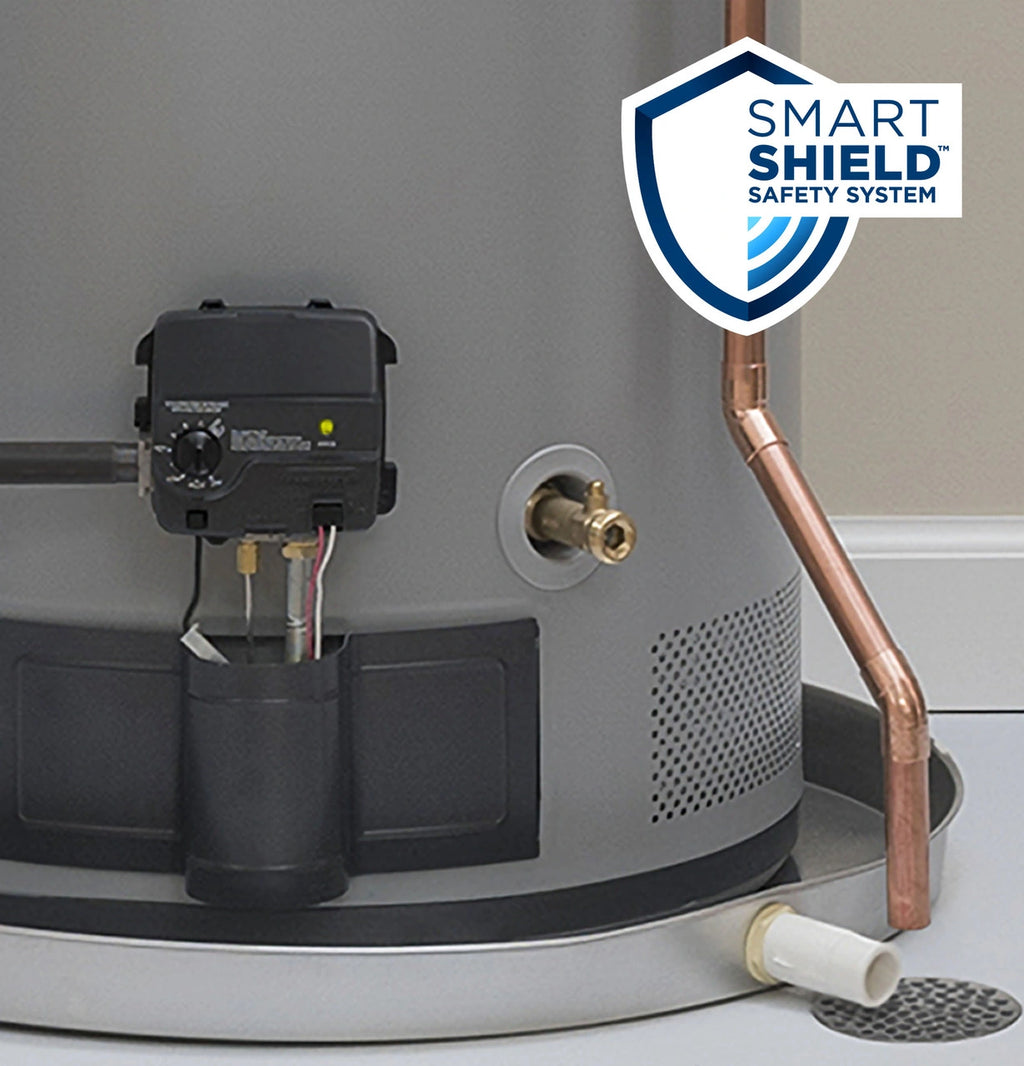

- SmartShield Safety System: This system monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected, preventing accidental ignition of flammable vapors (FVIR safety system).
- Self-Diagnostic: An LED status indicator light monitors and reports on the gas system status.
- Durable Construction: Features a magnesium anode rod for corrosion protection and a rust-proof plastic drain valve for long-lasting service.
- Easy Installation: Designed with standard water and gas connections for a straightforward replacement process.
Product Description

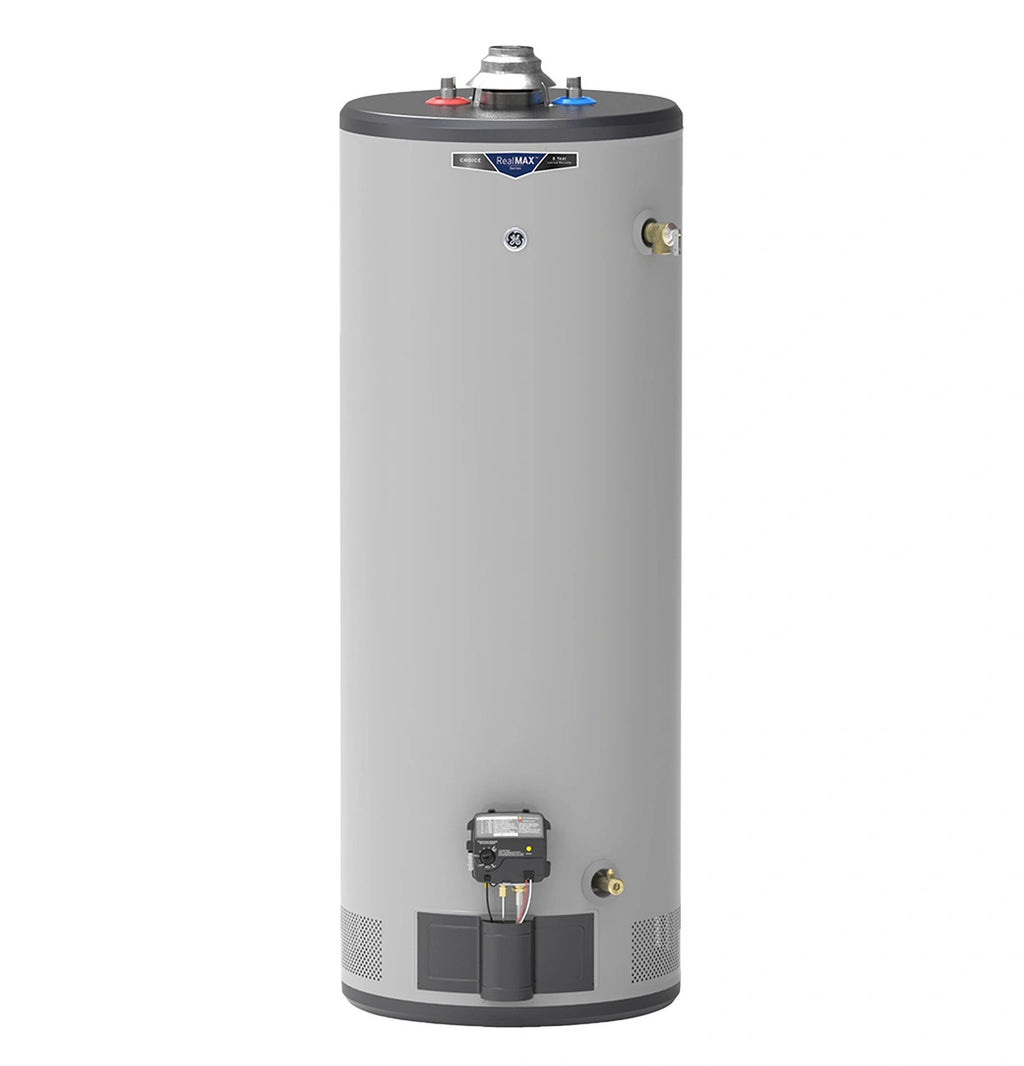

Product Type: Atmospheric Gas Storage Tank Water Heater
The GE GG40T08BXR is a 40-gallon tall natural gas atmospheric water heater designed to provide hot water for a household of 2 to 4 people. It is part of the GE RealMAX Choice series and includes safety and diagnostic features.
Specifications
| Specification | Detail |
| Capacity | 40 Gallons |
| Fuel Type | Natural Gas |
| First Hour Delivery | 83 gal/hr |
| Burner BTU Size | 40,000 BTU |
| Energy Efficiency (UEF) | 0.64 |
| Dimensions (Overall) | Height: 61 7/8 in (61.875") x Width: 20 in x Depth: 20 in |
| Net Weight | 140 lb |
| Temperature Range | 45°F to 160°F |
| Vent Type | Atmospheric (requires 3" Type B Vent) |
| Water Connection Size | 3/4" (MNPT at top location) |
Product Attribute
| Brand: | GE Zoneline |
|---|
