Southwire

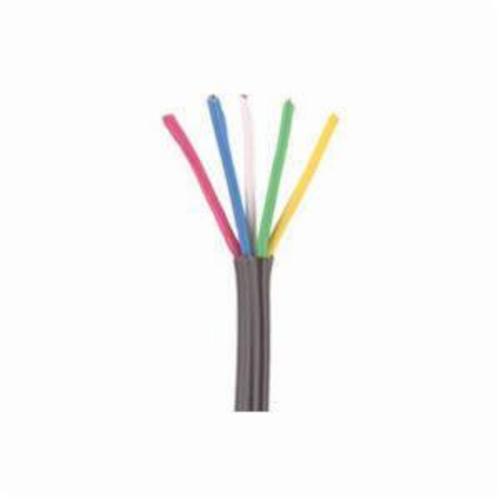

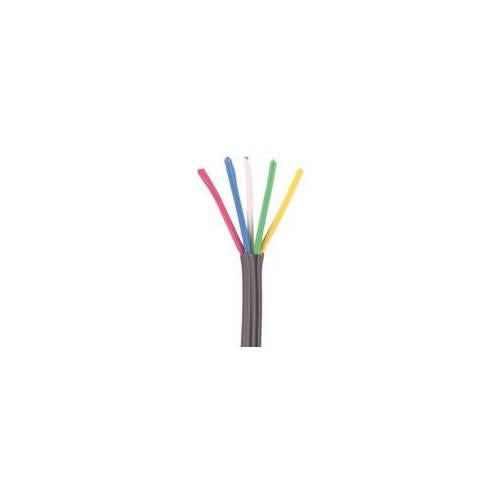

Southwire WIRE 553085407 18/8 T-STAT 250
Part #31870
To place an order, please call 800-635-1001 or email e-commerce@fisscosupply.com.
Description
Baron thermostat wire has been the wire of choice for connecting HVAC/R equipment and controllers for residential and industrial applications. Choose either Baro-Pak or reel configurations.
Application
For Class 2 power limited circuit cable used in thermostat control applications
Item Features
- Smooth jacket eliminates snagging and tearing
- PVC jacket, polypropylene insulation ensures excellent strip ability
- Sunlight-resistant jacket
- 50.5 lb/1m ft nominal approximate cable weight
- 25 pF/ft nominal capacitance between conductors at 1 kHz
- 6.32 Ohm/1000 ft nominal DC resistance per conductor at 20 deg C
- Red, white, green, blue, yellow, brown, orange, black insulation colors
- https://www.youtube.com/watch?v=3etVhr84oCY
Standards
C(ETL)us CL2|NEC Article 725,Type CM or CMH/FT1|UL 13
Product Attribute
| Brand: | Southwire |
|---|---|
| Conductor Size: | 18 AWG |
| Conductor Type: | Bare Solid Copper |
| Country of Origin: | US |
| Insulation Material: | Polypropylene |
| Jacket Color: | Brown |
| Jacket Material: | PVC |
| Length: | 250 ft |
| Manufacturer Name: | Southwire Company |
| Number of Conductors: | 8 |
| Outside Diameter: | 0.202 in |
| Packaging Type: | Reel |
| Resistance: | 6.32 Ohm |
| Series: | 55308 |
| Temperature Rating: | -20 to 60 deg F |
| Type: | Type CL2 |
| Voltage Rating: | 150 VAC |
